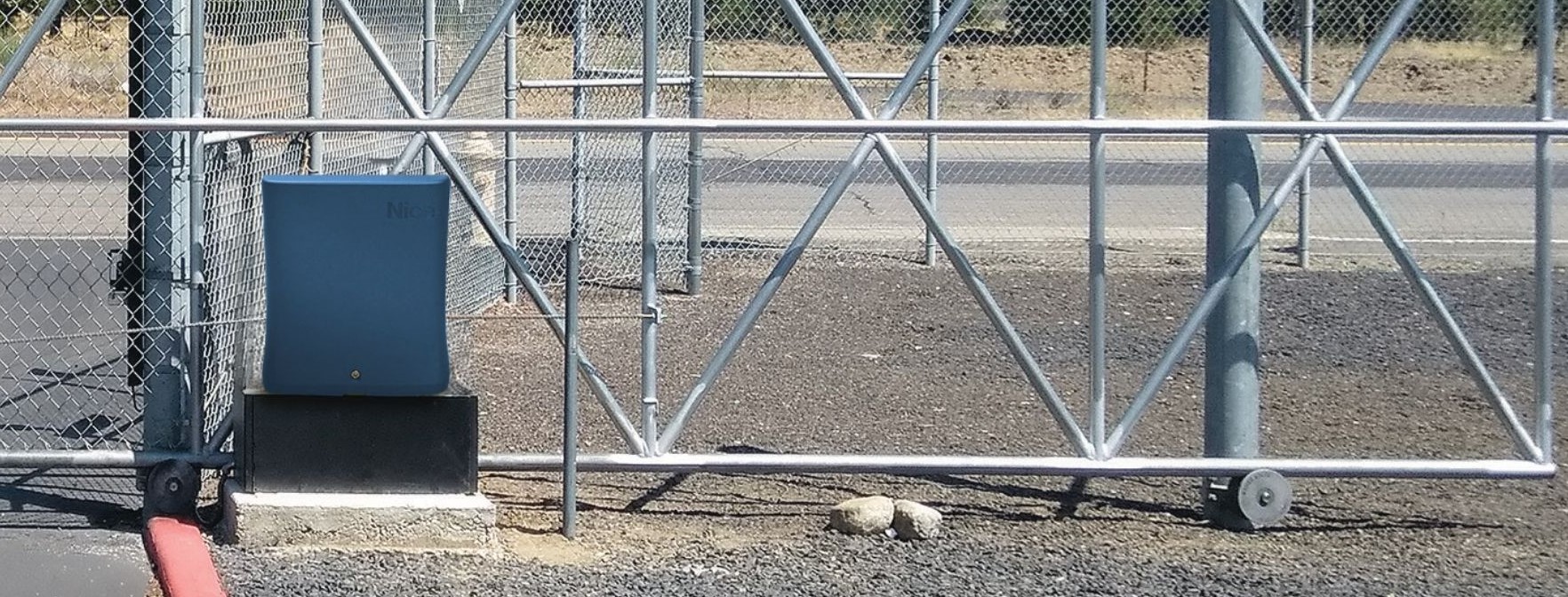

SlideSmart 535

Phone App Control

Setup and configure the operator from the comfort of the service vehicle. Every function can be set using the app, including gate handing, entrapment sensor functions and settings, setting the limits, and configuring the built in seven-day timer.

Integrated SmartTouch725 Controller.

The integrated HySecurity SmartTouch 725 features a high temperature resistant plastic enclosure, improved immunity to damage from lightning, improved circuitry on control inputs, improved Hy5B detector ports, and a low power design to optimize solar performance.

Advanced Power Module

The all-new Smart BLDC Power Module controls all high-power functions: battery management, solar charging, motor control and power, and limit sensing.

UPS Battery Backup Cycles

Field configurable to fail open or secure when batteries deplete. Standard battery backup gate travel: Two 12V 8Ah batteries. Up to 300 cycles after AC power loss.

Integrated SmartTouch725 Controller.
Battery backup for up to 300 cycles after power loss.
Close fitting, locking covers.
Powerful, compact brushless DC motor.
Upgrade to 35Ah lithium batteries for solar applications.

SmartTouch 725

Bluetooth connectivity for easy setup

HyNet technology

More than 70 user settings

Configure everything wirelessly from a smartphone interface

Built-in diagnostic and remote monitoring management and maintenance capabilities

Technical Specifications

Capability meets simplicity

Complete technical specifications can be found on our SlideSmart 535 product spec sheet.

Performance Capacity


Operator
Model	SlideSmart 535
Performance	Top
Drive	Electromechanical - 24V Brushless DC motor with direct drive gear train.
Horsepower	Equivalent to 1/2 hp
Duty Cycle	Continuous
Rate of Travel	0.75, 1 or 1.25 ft/s (23, 30 or 38 cm/s). Open/Close speed set independently.
